I was reading about wood splitters’ one day and the article mentioned rocket stoves. After I googled it I decided I had to have one.

There were many designs. How would I settle on the right one?

Most of them seemed small or not built to last (tin cans!!??) I couldn’t own something made out of “tin”.

The rocket stove works on the principle of lots of forced air moving over a fire causing rapid combustion. The forced air comes from the fact the fire is actually burning in the chimney! That is where the highest velocity air would be.

The existing ones had some things I liked: 1) portability, 2)able to run on very small pieces of wood, 3) able to start up quickly with little effort.

After looking at existing ones, I decided mine would have to have two features I had not found: 1) tall enough so I could use the cooking surface without bending over too much, 2) an ash chamber to allow extended burns.

Off to the shop. I found some square and rectangular tube, some flat sheet steel and some 1/2″ steel bar for handle and legs.

A little cutting, a little welding and home for a test run!

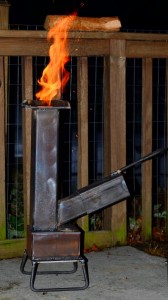

     Click on the picture to enlarge!

She works! It even sounds like a rocket when burning, which is where the name rocket stove came from.

The rocket stove will produce enough heat to pop popcorn! It will also boil water faster than our gas stove in the house.

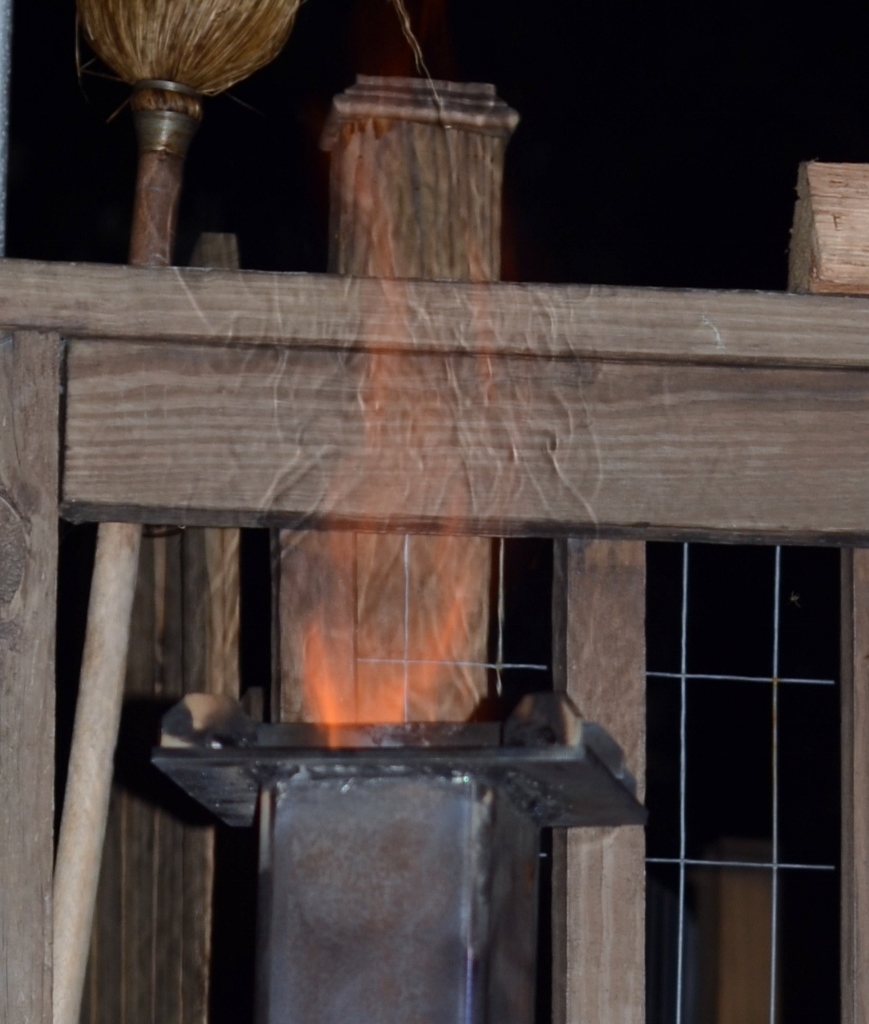

The stove will produce the pretty flames shown in the photo when fed soft wood like pine or spruce. A higher heat, but, less visible flame comes from burning oak.



  Click on picture to enlarge!

The ash compartment (the piece of tube at the base, just above the legs) will hold all the ash without filling if you were to run the stove continuously for 8 to 10 hours.

I have used the stove about a dozen times. always the wood is completely burned. The stove produces almost no smoke after initial startup, which can take 5 to 10 minutes.

Since the photos, I have painted the stove white, that was the only color high temp paint I had.

I now keep my rocket stove at my shed, and most fireups have been on cool days. It is a comforting heat source when working outside, and you never know when you are going to need a quick warm sandwich!!
